PB5000 Liquid Filling Machine
PB5000 Liquid Filling Machine


Semi-Automatic Volumetric Liquid Filling Machine

Specifically designed to offer exceptional value for money for non food and non pharmaceutical applications, the PB5000 filling machine comes in two standard versions – a 316 stainless steel version for general use and a glass/PVC version for filling bleaches and acids.

Featuring vertically mounted cylinders on a portable chassis, the PB5000 has a compact footprint and can be maneuvered easily, as required.

In standard form, the PB5000 can fill volumes of between 500ml and 5 litres. By adding a Multi Dose Counter and Wander Nozzle, fill volumes of up to 20 litres can be undertaken conveniently.

Number of filling heads available with the PB5000

Filling Heads

1 or 2

Standard range of liquid filling volumes for the PB5000

Fill Volumes

500ml – 5.2 litres

Maximum number of bottles per minute from the PB5000


Up to 20 bottles per minute

Level of accuracy of the PB5000


Up to +/-0.5%

PB5000 Features


Simple and reliable to use


Custom made nozzle for optimum filling efficiency


Flushing facility for easy cleaning


Small footprint portable chassis that can be wheeled into position in any production area


Simple manual adjustments for changing speed and size of fill


Pneumatic operation suitable for hazardous areas or wash-down facilities


Supply via feed pipe or direct connection to IBC

Pneumatic operation suitable for hazardous areas or wash-down facilities

PB5000 Options & Extras


Full diving nozzle


multi-dose counter

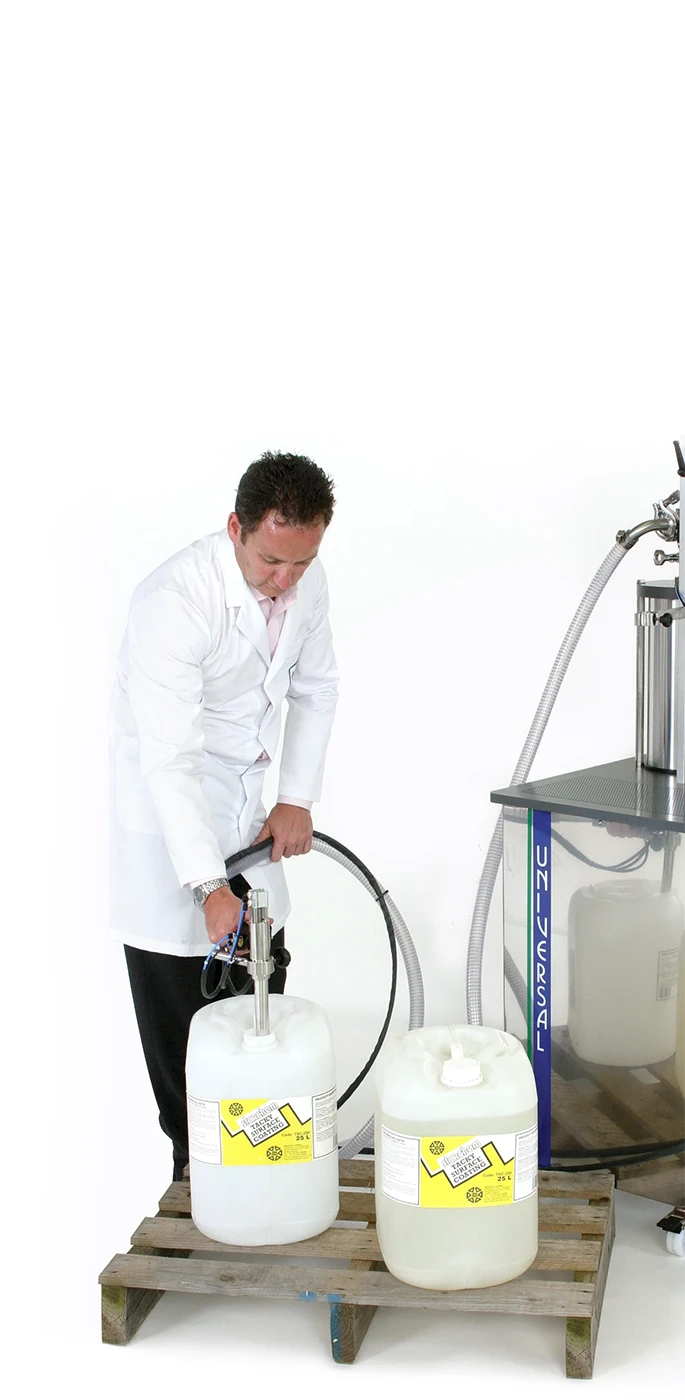

Wander Nozzle


Numerical Counters on Speed Adjusters


Secondary speed adjustment


Future expandability – can be linked together and incorporated into fully automatic machine

What Our Customers Say

“Universal Filling Machine Company have supplied us with a number of machines in the past that have increased our production output 3 fold.”

Paul Sharpe, Engineer, Statfold Seed Oils

Request further information about the PB5000

Quality And Service

Our customers range from start-up enterprises to exclusive, world-famous brands.

We pride ourselves in manufacturing the highest quality products and supporting our customers with outstanding service. And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.

Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
