Posicap ROPP
Automatic Capping Machine For ROPP Caps

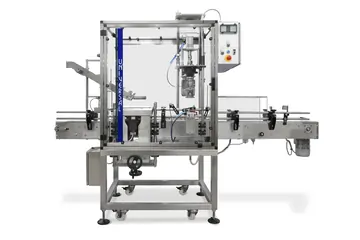

The Posicap ROPP is a fully automatic single or twin head ROPP (Roll On Pilfer Proof) capping machine.
Built upon Universal’s tried and tested Posicap platform and control system, the Posicap ROPP replaces screw capping for ROPP capping heads.
ROPP or Roll-On-Pilfer-Proof caps are widely used for capping a variety of glass bottles and containers to provide a tamper-evident method of sealing.
Aluminium caps are placed on to bottles and the rotating capping head forms the cap to the bottle, creating a screw thread and perforated rim in the process.
Ideal For:
• Wines and Spirits
• Food Colourings
• Edible Oils
• Oral Medicines
Speed
Up to 60 bottles per minute
Cap Size
18-38mm Diameter
Bottle Size
20-200mm Diameter x Up to 400mm Height
Posicap ROPP Features
Single or two head operation which can achieve output speeds of up to 60 bottles per minute
ATEX certified version available for capping flammable substances.
Manual or automatic solutions for cap sorting, feeding and placing caps onto bottles.
Simple to set up, operate and maintain
Fast changeovers for bottle and closure size
Suitable for a wide range of bottle and cap sizes
In-line gating system (no change parts)
CE Certified to meet European Safety Standards
Manufactured in the UK
PLC Controlled
Posicap ROPP Options & Extras
Rotary Infeed & Outfeed Tables
Automatic Cap Sorting and Feeding Systems
What Our Customers Say
“Universal are our number one choice when we require a new filling machine …”
– Dale Eames, Production Manager, Vitax Limited
Quality and Service
Our customers range from start-up enterprises to exclusive, world-famous brands.
And, having built a worldwide client base after more than 50 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.
Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
Why Choose Universal Filling Machine Company?
50+ Years’ Experience as an Industry Leader
Outstanding Customer Service
Built Using the Highest Quality Components and Materials
Customers in Over 80 Countries Around the World
Machines Can Be Specified To Suit Almost Any Liquid
Designed and Manufactured in the UK
Request further information about the Posicap ROPP automatic capping machine
Our machines are designed to be highly versatile and adaptable, but as no two customers are the same, we have a large technical department offering you a bespoke solution to meet your exact requirements and ensure they’re ready to evolve as your business grows.
Our engineers will work with you to meet your exact requirement now and in the future.
Speak to Our Experts Today
Call Us
Speak to one of our team of Bottling Machine experts right now, call us on
+44 (0)1233 643666
Email Us
Email our sales team with details of your requirements: salesuk@universalfilling.com
Fill In the Form
We are more than happy to contact you to discuss your needs, simply fill in the form and click SUBMIT.
Frequently Asked Questions
What is the Posicap automatic capping machine?
The Posicap is an automatic capping machine designed for fast, reliable inline bottle capping. It handles up to 30 bottles per minute and replaces the need for multiple operators. It is designed to work seamlessly with inline filling systems.
How fast is the Posicap?
Up to 30 bottles per minute. For higher speeds, our Universal Belt Capper, Posicap ROPP and Posicrimp machines run at up to 60 per minute.
What types of cap can the Posicap fit?
It fits a wide range of closures, including screw caps, child-resistant caps, pump sprays, push-pull caps, flip-top caps and tamper evident caps. It can also be configured for automatic ROPP capping, cap crimping, and press-on and T-corking.
What bottle and cap sizes can it handle?
It caps closures from 8mm to 100mm in diameter on bottles from 15mm to 200mm in diameter and up to 400mm high.
How is the capping torque controlled?
The torque is fully adjustable up to 5Nm and can be changed while the machine is running. It applies consistent torque to every cap, which helps prevent leakers.
Case Studies
Capping Machines Quick Comparison Table
Machine
Speed
Cap Size
Bottle Size
Cap Torque
Cap Types
Universal Belt Capper
Up to 60/minute
20-120mm diameter
20-120mm diameter x
50-300mm height
Up to 10Nm
Screw Caps, Trigger Sprays, Pump Sprays, Push-Pull Caps, Flip-Top Caps, Tamper Evident Caps & more.
Posicap
Up to 30/minute
8-100mm diameter
15-200mm diameter x
up to 400mm height
Up to 5Nm
Child-Resistant Caps, Screw Caps, Pump Sprays, Push-Pull Caps, Flip-Top Caps, Tamper Evident Caps & more.
Posicrimp
Up to 60/minute
11, 13, 15, 17, 18 & 20mm
20-200mm diameter x
up to 400mm height
N/A
Crimped Caps, Pump Sprays, Septum Caps & similar
Not sure which solution is right for you? Talk to our team about your application.
