Posifill EF2500 Filling Machine
Posifill EF2500 Filling Machine

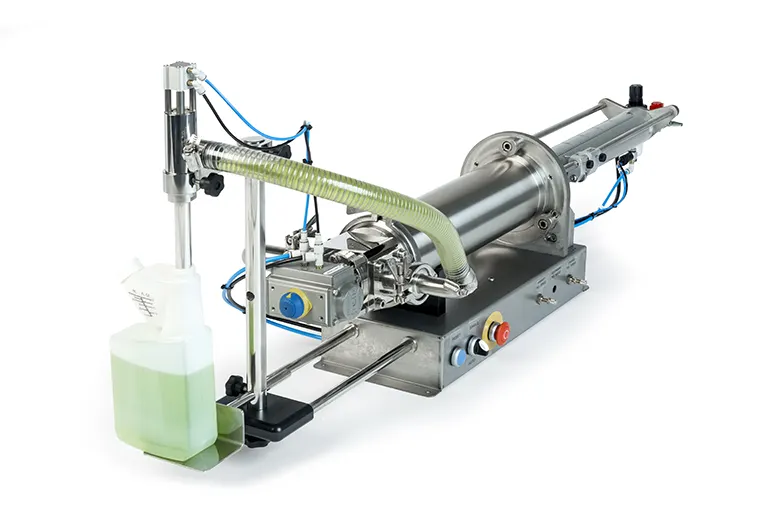

Posifill EF2500

High Volume Semi-Automatic Volumetric Liquid Filling Machine

The Posifill EF2500 is suitable for filling a wide range of liquids into containers ranging from 200ml – 2.5 litres in a single cycle (can also be used to fill 5 litre containers with multi-dose option).

Ideal for busy small to medium production requirements, the Posifill EF2500 offers fast, accurate filling by volume with rapid changeovers.

Simple to operate, clean and maintain, the Posifill EF2500 is powered only by compressed air.

Filling speeds of up to 30 containers per minute can be achieved with a wide range of liquids; from solvents to creams and gels, including food and dairy products containing particulates, such as fruit yoghurts, can also be filled by the Posifill EF2500.

Maximum number of bottles per minute from the Posifill EF

Filling Heads

1

Standard range of liquid filling volumes for the Posifill EF

Fill Volumes

200ml – 2,500ml

Number of filling heads available with the Posifill EF

Speed

Up to 30 bottles per minute

Level of accuracy of the Posifill EF

Accuracy

Up to +/-0.5%

Maximum number of bottles per minute from the Posifill EF

Filling Heads

1

Standard range of liquid filling volumes for the Posifill EF

Fill Volumes

200ml – 2,500ml

Number of filling heads available with the Posifill EF

Speed

Up to 30 bottles per minute

Level of accuracy of the Posifill EF

Accuracy

Up to +/-0.5%

Posifill EF2500 Features

R

Fills liquids, creams and gels

R

Small footprint for simple bench mounting

R

Quick release nozzle and feed pipe

R

Pneumatic operation suitable for hazardous areas

R

Future expandability – can be linked together and incorporated into fully automatic machine

R

Food and pharmaceutical quality 316 stainless steel contact parts

R

ATEX certified for filling flammable liquids

R

Tool free strip-down for easy cleaning

R

Easily accessible control panel mounted on the side of the machine

R

Foot pedal start for hands free operation

R

Ball & Spring or Rotary Valve options to suit any liquid

R

Feed pipes suitable for drawing from a barrel at floor level

Posifill EF2500 Options & Extras

R

Pneumatically operated nozzles for drip free filling

R

Short stroke & full diving nozzle for bottom up filling

R

Spinning table for cream pots

R

Product hoppers & tanks in various sizes (heated versions also available)

R

Two speed fill & Auto-flushing/Auto-run controls

R

Heating elements & controllers for hot filling applications

R

Wide range of hose & seal materials to suit almost any liquid

What Our Customers Say


“The Posifill machine we bought worked straight out of the box and the operators were very pleased with its operation.”

– Stephen Guest, Technical Manager, Jotun Paints

Quality and Service

Our customers range from start-up enterprises to exclusive, world-famous brands.

And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.

Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.

Request further information about the Posifill EF2500 semi-automatic liquid filling machine

Our machines are designed to be highly versatile and adaptable, but as no two customers are the same, we have a large technical department offering you a bespoke solution to meet your exact requirements and ensure they’re ready to evolve as your business grows.

Our engineers will work with you to meet your exact requirement now and in the future.

Frequently Asked Questions

What is the Posifill EF2500 best for?

The Posifill EF2500 is a larger-capacity variant of the Posifill EF, designed for businesses that require bigger fill volumes. It maintains the EF’s proven accuracy while extending its capabilities.

This makes it ideal for medium-scale producers who need larger fill volumes than the standard EF but still value flexibility and simplicity.

How does the Posifill EF2500 differ from the Posifill EF?

While the Posifill EF handles small containers with ease, the EF2500 is built to manage higher fill volumes up to several litres, all while retaining compact benchtop design. It bridges the gap between small-batch systems and larger floor-standing machines.

For businesses scaling up production, it offers more capacity without the need to move to a fully automatic system.

What liquids can the Posifill EF2500 fill?

Like the Posifill EF, the Posifill EF2500 can handle a broad range of liquids, from low-viscosity solutions to thicker substances such as gels or shampoos. Its piston-driven accuracy ensures compliance with volume regulations across all product types.

This versatility makes it a strong choice for producers in cosmetics, food, chemicals, and other sectors.

Is the Posifill EF2500 easy to clean and maintain?

Yes. The Posifill EF2500’s design allows for quick cleaning and fast part changes between products, minimising downtime. Maintenance is simple, and spare parts are readily available to ensure long-term performance.

With routine care, the Posifill EF2500 offers decades of dependable service, just like its smaller counterpart.
