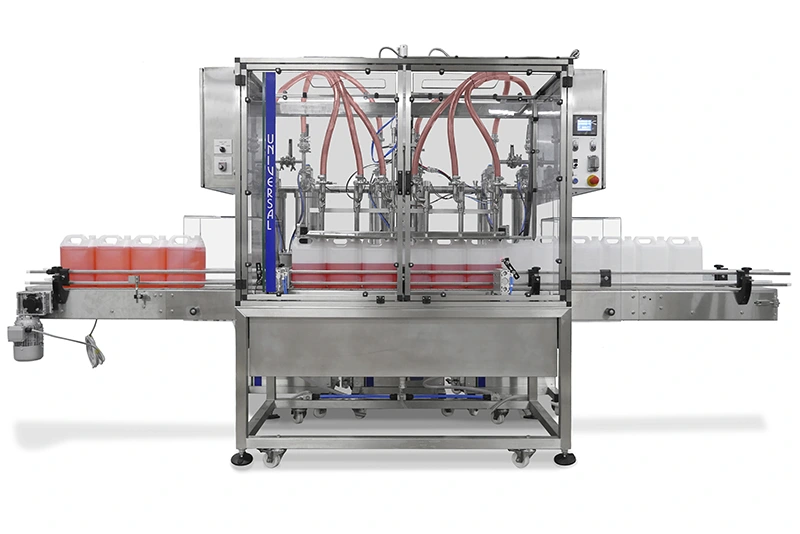

Posimatic EV5000
Automatic Volumetric Liquid Filling Machine
The Posimatic EV5000 is an extremely versatile, easy to operate, fully automatic filler and is ideal for stand-alone filling or as part of a complete packaging line.
Like all the best ideas, the Posimatic EV5000 concept is brilliant yet simple: give the flexibility to fill almost any liquid into a vast range of container sizes without having to buy extra change parts.
Whether it’s pharmaceuticals, foods, drinks, chemicals, cosmetics or household products, the Posimatic EV5000 offers one of the most versatile and cost-effective liquid filling solutions available today.
All contact parts are manufactured to the highest specification to comply with food and pharmaceutical regulations. The design of the Posimatic EV5000 incorporates many features which simplify setup, operation, cleaning and maintenance.
The chassis houses the pneumatic and electronic control panels in an IP65-rated enclosure and the front-mounted operator panel allow easy access to all the machine’s controls. The fully enclosed drip-tray allows any spillage and wash-down to drain to a single point.
The filling pump chassis is suitable for drawing liquid from floor-standing vessels or overhead tanks and can be disconnected from the main filling machine via quick-release connection and wheeled away from the production area for cleaning.
Filling Heads
2, 4, 6 or 8
Fill Volumes
250ml – 5,000ml
Speed
Up to 100 bottles per minute
Accuracy
Up to +/-0.5%

Filling Heads
2, 4, 6 or 8

Speed
Up to 100 per minute

Fill Volumes
250ml – 5,000ml

Accuracy
Up to +/-0.5%
Posimatic EV5000 Features
In-line format eliminates need for expensive change parts
Ergonomically designed for easy access for rapid changeovers and cleaning
Simple to use and maintain with tool-free speed and fill adjustment
Fully adjustable dive unit for neck entry or bottom-up filling
No container/no fill system
Suitable for handling a wide range of container shapes and sizes
Does not require highly trained operators
Fills liquids, semi-liquids and liquids with particulates
Food and pharmaceutical quality 316 stainless steel contact parts
ATEX certified version available
Variable speed slat chain conveyor system
Fully interlocked safety guards to CE standards
Fully adjustable container guide rails
Pneumatic nozzles for drip free operation
Rotary valve filling heads – suitable for all liquids
Optional vacuum suck-back system
Wide variety of hoppers and tanks available
Special seal and hose materials to suit all liquids
Conveyors to suit any application
In-line format eliminates need for expensive change parts
Ergonomically designed for easy access for rapid changeovers and cleaning
Simple to use and maintain with tool-free speed and fill adjustment
Fully adjustable dive unit for neck entry or bottom-up filling
No container/no fill system
Suitable for handling a wide range of container shapes and sizes
Does not require highly trained operators
Fills liquids, semi-liquids and liquids with particulates
Food and pharmaceutical quality 316 stainless steel contact parts
ATEX certified versions available
Variable speed slat chain conveyor system
Fully interlocked safety guards to CE standards
Fully adjustable container guide rails
Pneumatic nozzles for drip free operation
Rotary valve filling heads – suitable for all liquids
Optional vacuum suck-back system
Wide variety of hoppers and tanks available
Special seal and hose materials to suit all liquids
Conveyors to suit any application
