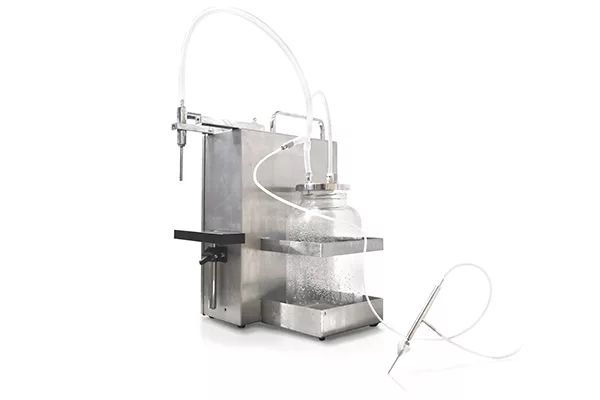

Vacufill
Semi-Automatic Vacuum Level Liquid Filling Machine
Semi-automatic vacuum-level filling liquid machines like the Vacufill are by far the easiest and most cost-effective solution for filling free flowing liquids such as wines, spirits, perfumes, fragrances or oils into rigid bottles.
The Vacufill is ideal for filling a wide range of free-flowing liquids (perfumes, wines, spirits, oils and solvents) into rigid containers (glass, tin, ceramics and rigid plastics).
Vacufill fills to a set height from the neck of the bottle down regardless of volume of the bottle, making it particularly well suited to filling into glass, where tolerances and variation can be large.
A Compact But Highly Capable Liquid Filling Machine
Smaller and more affordable than its larger sibling Easifill, Vacufill semi-automatic vacuum level liquid filling machine offers fantastic performance in a compact package. The chassis uses a polished stainless-steel cabinet as a sturdy base with the high-quality pharmaceutical finish expected by Universal’s clients.
Filling Heads
1 or 2
Fill Volumes
Up to 500ml (typical)
Speed
Up to 40 bottles per minute
Accuracy
Up to +/-0.5mm
Filling Heads
1 or 2
Speed
Up to 40 per minute
Fill Volumes
Up to 500ml (typical)
Accuracy
Up to +/-0.5mm
Vacufill Features
Low maintenance – no moving parts on vacuum inducer model
No container – no fill, for zero spillages
Drip-free filling
0 – 500ml typical fill range
Fills free-flowing liquids to a repeatable fill level for visual presentation
Available with either 1 or 2 filling heads
Filling speeds of up to 40bpm
Level accuracy of +/- 0.5mm can be achieved
Food and pharmaceutical quality stainless steel contact parts
Stainless steel feed pipes with non-return valves for drawing liquid from floor level supply vessel
Low maintenance – no moving parts on vacuum inducer model
No container – no fill, for zero spillages
Drip-free filling
0 – 500ml typical fill range
Fills free-flowing liquids to a repeatable fill level for visual presentation
Available with either 1 or 2 filling heads
Filling speeds of up to 40bpm
Level accuracy of +/- 0.5mm can be achieved
Food and pharmaceutical quality stainless steel contact parts
Stainless steel feed pipes with non-return valves for drawing liquid from floor level supply vessel
Vacufill Options & Extras
Wide range of hose & seal materials to suit almost any liquid
Wander Nozzle attachment available
Pneumatic vacuum inducer or electrical vacuum pump
Wide range of hose & seal materials to suit almost any liquid
Wander Nozzle Attachment
What Our Customers Say
“… We love our Vacufill, it has made our lives so much easier …”
– Tracy Eden, Creative Director,
Manager Spray HQ, Angelic Celestial Colours Ltd.
www.angeliccelestialcolours.co.uk & www.amandaellis.co.uk
Request further information about the Vacufill
Quality And Service
Our customers range from start-up enterprises to exclusive, world-famous brands.
We pride ourselves in manufacturing the highest quality products and supporting our customers with outstanding service. And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.
Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
