Posicap

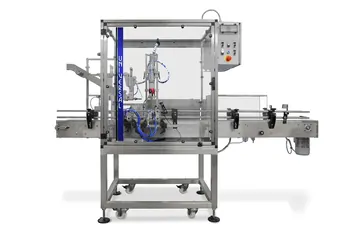

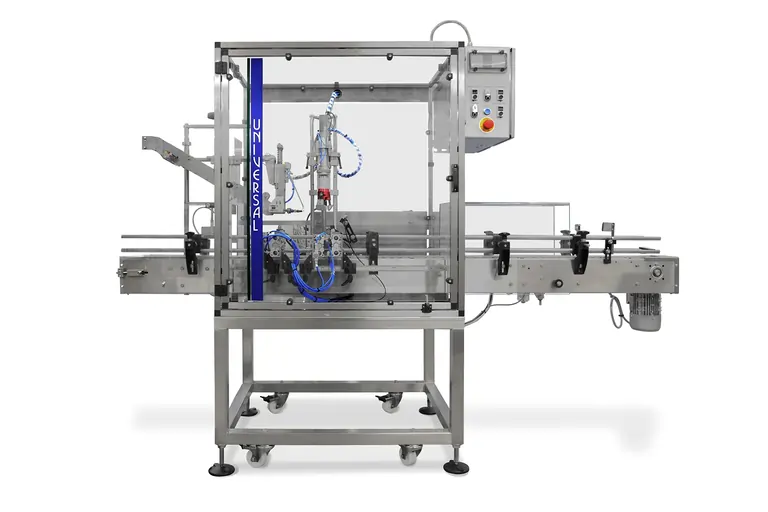

Automatic Capping Machine
As part of a production line, this automatic capping machine is capable of operating at up to 30 bottles per minute, which would normally require at least two operators to place and tighten by hand.
Simple cap head height adjustment and quick change jaws facilitate quick product changeovers, reducing downtime to a minimum. The Posicap is an ideal addition to an inline filling system and can be used as part of a fully automatic filling and capping line.
The Posicap automatic capping machine operates at a lower speed than the In-Line Universal Belt Capper but can be supplied with different capping heads depending on the application:
Automatic Screw Capping
Automatic ROPP Capping
Automatic Cap Crimping
Automatic Press-on and T-Corking
The Posicap can also be supplied with automatic cap feeding and placing systems as well as missing cap and reject systems if required.
Speed
Up to 30 bottles per minute
Cap Size
8-100mm Diameter
Bottle Size
15-200mm Diameter x Up to 400mm Height
Torque
Up to 5Nm
Posicap Features
No expensive change parts due to in-line operation (no star-wheels or scrolls needed)
ATEX certified version available for capping flammable substances.
Fully adjustable torque setting
Manual or automatic solutions for cap sorting, feeding and placing caps onto bottles.
Pneumatic gating system
Provides consistent torque – prevents ‘leakers’
Single set of gripping jaws
Torque adjustment can be changed whilst running
Fibre optic container sensors
What Our Customers Say
“Universal are our number one choice when we require a new filling machine …”
– Dale Eames, Production Manager, Vitax Limited
Quality and Service
Our customers range from start-up enterprises to exclusive, world-famous brands.
And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.
Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
Request further information about the Posicap
Our machines are designed to be highly versatile and adaptable, but as no two customers are the same, we have a large technical department offering you a bespoke solution to meet your exact requirements and ensure they’re ready to evolve as your business grows.
Our engineers will work with you to meet your exact requirement now and in the future.
