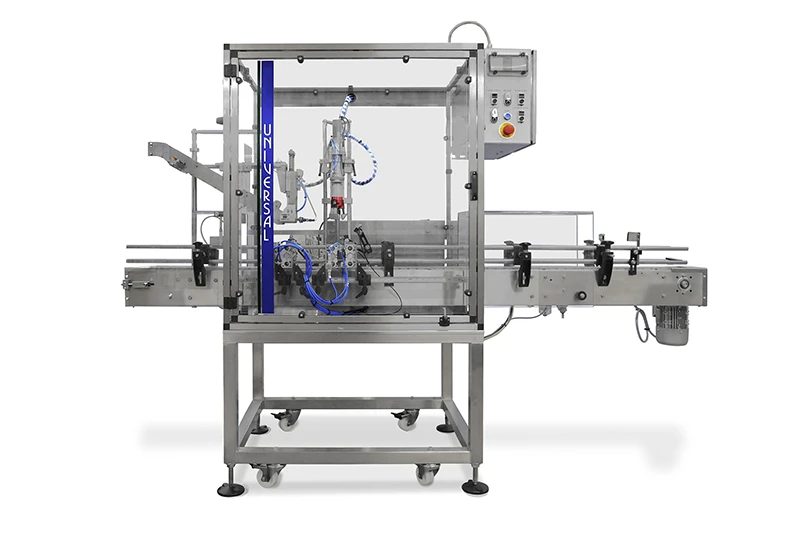

Posicap Inline Screw Capping Machine
Posicap Inline Screw Capping Machine

Posicap

Automatic Screw Capping Machine

As part of a production line, this cap tightening unit is capable of operating at up to 30 bottles per minute, which would normally require at least two operators to place and tighten by hand.

Simple cap head height adjustment and quick change jaws facilitate quick product changeovers, reducing downtime to a minimum. The Posicap is an ideal addition to an inline filling system and can be used as part of a fully automatic filling and capping line.

The Posicap machine operates at a lower speed than the In-Line Belt Capper but can be supplied with different capping heads depending on the application:

  • Screw Capping
  • ROPP Capping
  • Crimping
  • Press-on and T-Corking

The Posicap can also be supplied with automatic cap feeding and placing systems as well as missing cap and reject systems if required.

Maximum capping speed of the Posicap

Speed

Up to 30 bottles per minute

Cap size range for the Posicap

Cap Size

8-100mm Diameter

Bottle size range for the Posicap

Bottle Size

15-200mm Diameter x Up to 400mm Height

Maximum cap tightening torque on the Posicap

Torque

Up to 5Nm

Cap size range for the Posicap

Cap Size

8-100mm Diameter

Bottle size range for the Posicap

Bottle Size

15-200mm Diameter x Up to 400mm Height

Maximum capping speed of the Posicap

Speed

Up to 30 bottles per minute

Maximum cap tightening torque on the Posicap

Torque

Up to 5Nm

Posicap Features

R

No expensive change parts due to in-line operation (no star-wheels or scrolls needed)

R

ATEX certified version available for capping flammable substances.

R

Fully adjustable torque setting

R

Manual or automatic solutions for cap sorting, feeding and placing caps onto bottles.

R

No expensive change parts due to in-line operation (no star-wheels or scrolls needed)

R

Provides consistent torque – prevents ‘leakers’

R

Single set of gripping jaws

R

Torque adjustment can be changed whilst running

R

Pneumatic gating system

R

Fibre optic container sensors

R

No expensive change parts due to in-line operation (no star-wheels or scrolls needed)

R

ATEX certified version available for capping flammable substances.

R

Manual or automatic solutions for cap sorting, feeding and placing caps onto bottles.

R

Fully adjustable torque setting

R

No expensive change parts due to in-line operation (no star-wheels or scrolls needed)

R

Provides consistent torque – prevents ‘leakers’

R

Single set of gripping jaws

R

Torque adjustment can be changed whilst running

R

Pneumatic gating system

R

Fibre optic container sensors

What Our Customers Say


“Universal are our number one choice when we require a new filling machine …”

– Dale Eames, Production Manager, Vitax Limited

Quality And Service

Our customers range from start-up enterprises to exclusive, world-famous brands.

We pride ourselves in manufacturing the highest quality products and supporting our customers with outstanding service. And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.

Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.

Request further information about the Posicap
