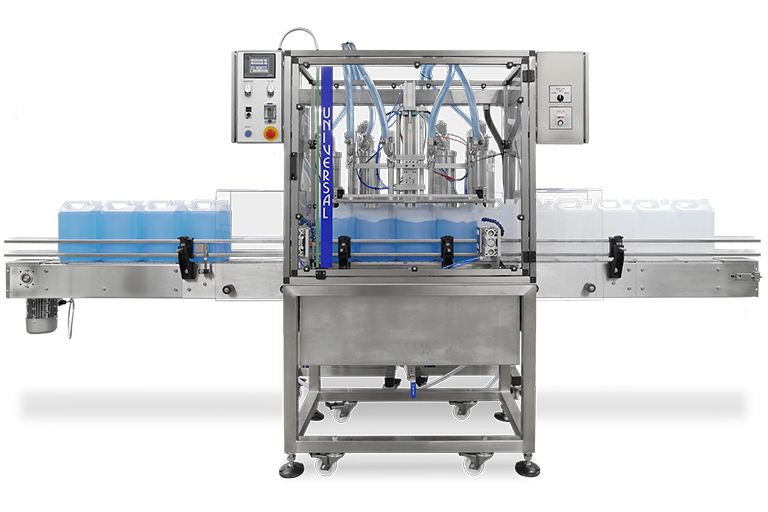

Posimatic EV5000
250ml – 5,000ml Automatic Liquid Filling Machine
The Posimatic EV5000 is a fully automatic, in-line filling machine for containers from 250ml to 5 litres, with 2, 4 or 6 filling heads and speeds of up to 40 bottles per minute. Use it stand-alone or as part of a complete bottling line..
One machine fills a wide range of container sizes without change parts, and handles liquids, semi-liquids and liquids with particulates. All contact parts are food and pharmaceutical quality 316 stainless steel.
Fill volume and speed adjust without tools, and the quick-release filling chassis wheels away for cleaning. Controls sit in an IP65 enclosure with a front-mounted operator panel.
The fully adjustable dive unit allows neck entry or bottom-up filling, and a no container/no fill system prevents wasted product. An ATEX certified version is available.
Filling Heads
2, 4 or 6
Fill Volumes
250ml – 5,000ml
Speed
Up to 40 bottles per minute
Accuracy
Up to +/-0.5%
Posimatic EV5000 Features
In-line format eliminates need for expensive change parts
Ergonomically designed for easy access, rapid changeovers & cleaning
Simple to use and maintain with tool-free speed and fill adjustment
Fully adjustable dive unit for neck entry or bottom-up filling
No container/no fill system
Suitable for handling a wide range of container shapes and sizes
Does not require highly trained operators
Fills liquids, semi-liquids and liquids with particulates
Food and pharmaceutical quality 316 stainless steel contact parts
ATEX certified version available
Variable speed slat chain conveyor system
Optional vacuum suck-back system
Wide variety of hoppers and tanks available
Special seal and hose materials to suit all liquids
Conveyors to suit any application
Touchscreen Control
Posimatic EV5000 Options & Extras
Pneumatically operated nozzles for drip free filling
Short stroke dive or full diving nozzle for bottom up filling
Rotary Infeed & Outfeed Tables
Product hoppers & tanks in various sizes (heated versions also available)
Two speed fill & Auto-flushing/Auto-run controls
Heating elements & controllers for hot filling applications
Wide range of hose & seal materials to suit almost any liquid
Available with either 316 stainless steel or glass & PVC contact parts, to suit your liquid
What Our Customers Say
“We have purchased from Universal for the past 8 years and have now purchased 7 filling machines – one being a fully automatic machine – this shows how happy we have been with their quality of build.”
– Mark Insted, Managing Director, Direct Independent Imports
Quality and Service
Our customers range from start-up enterprises to exclusive, world-famous brands.
And, having built a worldwide client base after more than 50 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.
Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
Why Choose Universal Filling Machine Company?
50+ Years’ Experience as an Industry Leader
Outstanding Customer Service
Built Using the Highest Quality Components and Materials
Customers in Over 80 Countries Around the World
Machines Can Be Specified To Suit Almost Any Liquid
Designed and Manufactured in the UK
Request further information about the Posimatic EV5000 automatic liquid filling machine
Our machines are designed to be highly versatile and adaptable, but as no two customers are the same, we have a large technical department offering you a bespoke solution to meet your exact requirements and ensure they’re ready to evolve as your business grows.
Our engineers will work with you to meet your exact requirement now and in the future.
Speak to Our Experts Today
Call Us
Speak to one of our team of Bottling Machine experts right now, call us on
+44 (0)1233 643666
Email Us
Email our sales team with details of your requirements: salesuk@universalfilling.com
Fill In the Form
We are more than happy to contact you to discuss your needs, simply fill in the form and click SUBMIT.
Frequently Asked Questions
What is the Posimatic EV5000 best suited for?
The Posimatic EV5000 is a fully automatic, in-line filling machine for containers from 250ml to 5 litres, with 2, 4 or 6 filling heads. It is well suited to 5 litre bottles and jerrycans, where filling by hand or semi-automatically can limit output.
Typical products include paints and coatings, cleaning chemicals and detergents, lubricants and oils, automotive fluids such as screenwash and antifreeze, and food products such as cooking oils and sauces.
Use it stand-alone, or as the filling stage of a complete bottling line with capping and conveyors.
What liquids can the Posimatic EV5000 fill?
It fills liquids, semi-liquids and liquids with particulates. All contact parts are food and pharmaceutical quality 316 stainless steel, and seals and hoses can be specified to suit your product.
That makes it suitable for pharmaceutical, food and drink, chemical, cosmetic and household products, with an ATEX certified version available for hazardous areas.
How easy is the Posimatic EV5000 to clean?
The EV5000 is designed for rapid cleaning and changeovers. The fully enclosed drip tray drains spillage and wash-down to a single point, and the filling chassis disconnects by quick-release connection so it can be wheeled away from the production area.
All contact parts are food and pharmaceutical quality 316 stainless steel, and controls are housed in an IP65-rated enclosure.
Is the Posimatic EV5000 the right model for my containers?
The EV5000 is our automatic filler for containers from 250ml to 5 litres. For smaller containers, the Posimatic EV1000 fills from 5ml up to 1,300ml, and the Posimatic EV2500 sits between the EV1000 and the EV5000.
If you’re filling above 5 litres, talk to our engineers. The EV5000 can be configured to fill 10 litre containers by double cycling, usually with larger bottle conveyors, and our semi-automatic range covers larger containers. We’ll recommend the best machine for your application.
