Easifill

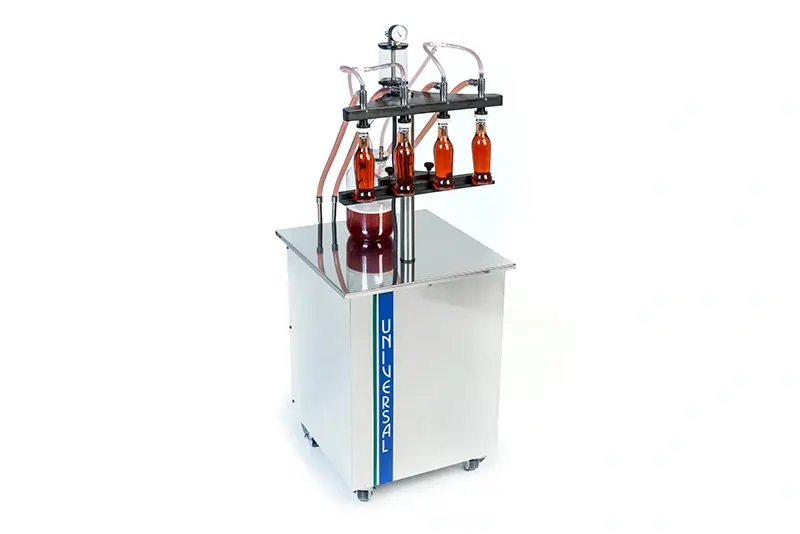

Semi-Automatic Vacuum Level Liquid Filling Machine
This Vacuum Level Filling Machine is perfect where ‘on the shelf’ presentation is important as the fill level will be consistent, even when internal bottle tolerances vary. The unit is suitable for any size glass or rigid bottles, from tiny nail polish bottles to wine bottles. It is available in both pneumatic and electrical versions. Easifill is available with 2, 4, or 6 filling heads and the nozzles can be made to suit your application. Designed and manufactured at our UK headquarters with meticulous attention to detail, and with very few moving parts, Easifill is incredibly reliable and capable of filling up to 40 bottles per minute.Please note: Our offices will close for Christmas at 12:00pm (GMT) on Friday 20th December 2024 and reopen on Thursday 2nd January 2025 at 8:30am (GMT). During this time, our telephones will not be answered.
The last day for spare parts to be dispatched will be Thursday 19th December 2024.
Filling Heads
2, 4 or 6
Fill Volumes
Up to 500ml (typical)
Speed
Up to 40 bottles per minute
Accuracy
Up to +/-0.5mm
Easifill Features
Fast, accurate level filling
Low maintenance – no moving parts on Inducer model
No container – no fill, for zero spillages
Drip-free filling
Simple operation & cleaning
Can be upgrade as your requirements evolve
ATEX certified variant available
Fills free-flowing liquids into rigid containers to predetermined level
Food and pharmaceutical quality 316 stainless steel contact parts
Stainless steel feed pipes with non-return valve suitable for drawing liquid from a tank at floor level
Filling nozzles designed for optimum performance with fill height adjustment mechanism
Height adjustable container support platform
Glass interceptor jar with quick release lid
Adjustable vacuum control system to regulate fill speed
Easifill Options & Extras
2, 4 or 6 head variants
Portable stainless steel cabinet or bench mounted
Pneumatic inducer pump or electrical vacuum pump
Automatic overflow return unit
Float level control feed tank – 25 or 50 litre
Handheld Wander Nozzle for filling very small containers
Wide range of hose & seal materials to suit almost any liquid
What Our Customers Say
“Universal Filling Machines offer some simple yet effective semi-automatic filling machines which can be integrated into start-up production systems. Due to their robust, reliable yet simple design they can be operated with little or no engineering resource.”
– Alastair Gilchrist, Managing Director, Gilchrist Technical Services
Quality and Service
Our customers range from start-up enterprises to exclusive, world-famous brands.
And, having built a worldwide client base after more than 45 years in business, we are proud that nearly 70% of our orders today are repeat business with existing customers, who rely on Universal Filling Machine Company to provide them with first class support and help them grow their businesses.
Every single machine or system we sell is 100% tested in our production facility to ensure it meets the customer’s requirements and performance targets.
Request further information about the Easifill semi-automatic liquid filling machine
Our machines are designed to be highly versatile and adaptable, but as no two customers are the same, we have a large technical department offering you a bespoke solution to meet your exact requirements and ensure they’re ready to evolve as your business grows.
Our engineers will work with you to meet your exact requirement now and in the future.
