Universal Belt Capper

Automatic Cap Tightening Machine

Universal Belt Capper

Automatic Cap Tightening Machine

The Universal Belt Capper is probably the most flexible cap tightening machine available and can handle a range of bottle sizes from 10ml up to 5 litre jerry cans without the need for any additional parts.

Tool free change overs are quick and simple and numerical indicators are supplied as standard to assist with fast repeatable machine setting.

Rubber belts are used to hold the bottle/container and stop it twisting, whilst a second set of belts tighten the cap. Once the correct torque has been achieved the cap tightening belts disengage.

The Universal Belt Capper is an ideal addition to an inline filling system and can be used as part of a fully automatic filling and capping line.


Key Benefits

  • In line format eliminates need for bottles to stop & start
  • Suitable for almost any pre-threaded screw cap
  • Able to handle trigger sprays and hand pump type caps
  • Capping belts achieve greater torque consistency than similar spindle capping machines
  • Tool free changeovers
  • Caps can be placed by hand or
  • Optional Bulk Hopper Elevators and Vibratory Bowl Feeders can be supplied to provide fully automated systems.


  • Output speeds of up to 70 bottles per minute
  • Suitable for containers from 20mm diameter x 50mm tall up to 120mm diameter x 300mm tall
  • Suitable for cap diameters from 20mm up to 120mm diameter
  • Torque range up to 10 Nm

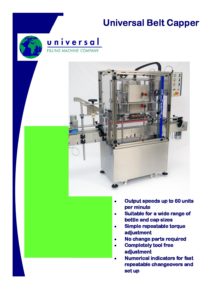

Click image to enlarge

Request further information about this machine
